Webhooks

Overview

Quill Forms Webhooks integration allows you to automatically send form submission data to external services via HTTP requests. This powerful feature enables seamless integration with third-party applications, APIs, and services whenever a form is submitted, saved, or partially submitted.

Configuration Interface

Connection Setup

Connection Name

Assign a descriptive name to your webhook connection for easy identification in your form settings. The default naming convention is “Connection #1”, “Connection #2”, etc.

Trigger Events

Configure when the webhook should be executed:

  • Submission: Fires when a user completes and submits the entire form
  • Saving the form: Triggers when the form is saved (useful for draft functionality)
  • Partial Submission: Executes when a user submits an incomplete form

Request Configuration

Request URL

Specify the endpoint where form data will be sent. The URL field supports:

  • Static URLs (e.g., https://api.example.com/webhook)
  • Dynamic URLs with merge tags for personalization
  • Rich text editing with merge tag insertion capabilities

Request Method

Select the HTTP method for your webhook request:

  • POST (default and most common)
  • GET
  • PUT
  • PATCH
  • DELETE

Request Headers

Configure custom HTTP headers for authentication and content specification:

  • Add key-value pairs for headers
  • Support for dynamic values using merge tags
  • Common headers include:
    • Authorization: For API authentication
    • Content-Type: Specify content format
    • User-Agent: Custom user agent strings
    • Custom headers as required by your endpoint

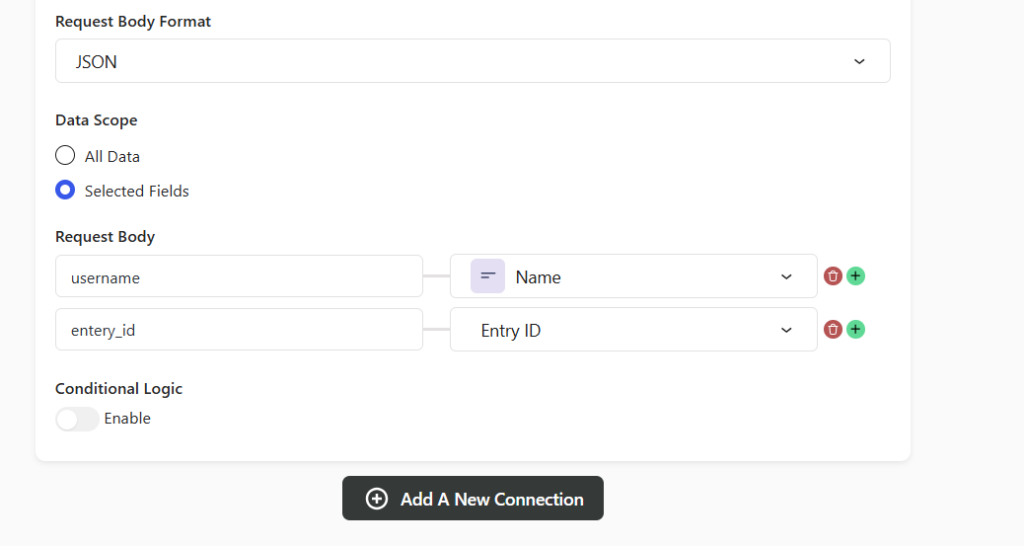

Request Body Format

Choose how the data should be formatted:

  • JSON (default): Sends data as JSON payload
  • Form Data: Sends data as application/x-www-form-urlencoded
  • Raw: Send custom formatted data

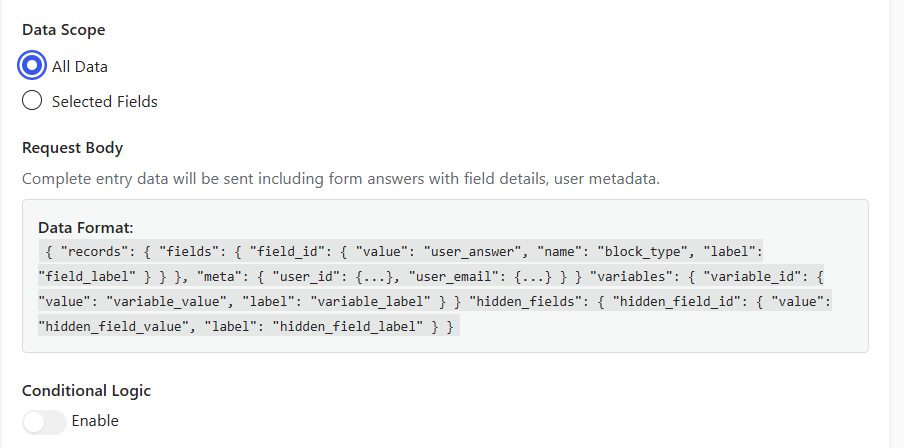

Request Body Mapping

Map form fields to request body keys:

  • Key: The parameter name in the request body
  • Value: Select from available form fields or merge tags
  • Support for system fields:
    • Entry ID: Unique identifier for each submission
    • Form Name: The title of the form
    • Submission Time: Timestamp of submission
    • Custom field values from your form

Advanced Features

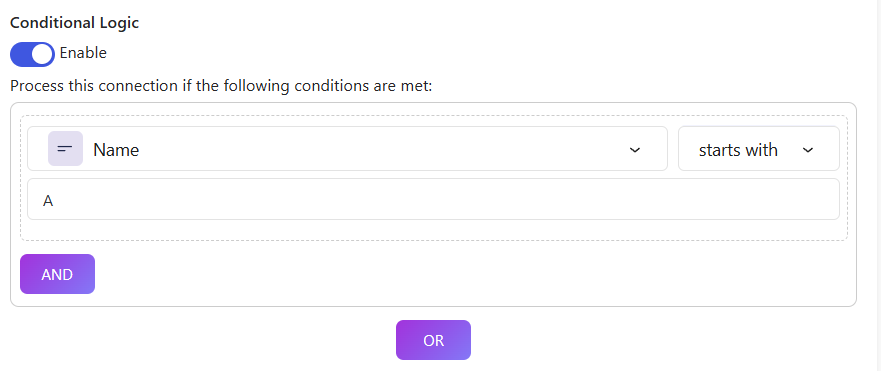

Conditional Logic

Enable conditional webhook execution based on form responses:

  • Add conditions to control when webhooks fire
  • Support for multiple conditions with AND/OR logic
  • Useful for routing different responses to different endpoints

Management Actions

Connection Controls

  • Run Manually: Test the webhook connection immediately
  • Delete Connection: Remove the webhook configuration

Dynamic Content Support

The webhook system supports merge tags for dynamic content insertion:

  • Field values
  • System information like entry id and form name.
  • Date/time stamps like submission date

Use Cases

CRM Integration

Send lead information directly to your CRM system when forms are submitted.

Email Marketing

Add subscribers to email lists automatically based on form submissions.

Analytics and Tracking

Send conversion data to analytics platforms for tracking.

Custom Business Logic

Trigger custom workflows in your application based on form responses.

Notification Systems

Send real-time notifications to team communication tools like Slack or Discord.

Best Practices

Security

  • Always use HTTPS endpoints for sensitive data
  • Implement proper authentication headers
  • Validate webhook sources on the receiving end

Error Handling

  • Set up proper error monitoring on your webhook endpoints
  • Consider implementing retry logic for failed requests
  • Log webhook activities for debugging purposes

Performance

  • Keep webhook endpoints responsive to avoid timeouts
  • Consider using queue systems for heavy processing
  • Monitor webhook execution times regularly

Testing

  • Use the “Run Manually” feature to test configurations
  • Test with various form data scenarios
  • Verify data mapping accuracy before going live

Troubleshooting

Common Issues

  • Connection timeouts: Check endpoint availability and response times
  • Authentication failures: Verify API keys and authentication headers
  • Data format errors: Ensure request body format matches endpoint expectations
  • Missing data: Verify field mapping and merge tag syntax

Debugging Tips

1- Test endpoints independently before integrating with QuillForms

2- Check Quill Forms logs for webhook execution details from Quill Forms dashboard -> System -> Logs

3- Use tools like ngrok for local endpoint testing
